Stardrawing 12inch 305mm Industrial Heavy Duty Mecanum Wheel for Robot Stainless Steel

Get superior maneuverability and durability with our 12inch stainless steel Mecanum Wheel for robots. Designed for heavy-duty industrial use. Factory direct pricing."
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Detailed Photos
  • Product Description
  • Main Features
  • Product Parameters
  • Applications
  • Packaging & Shipping
  • Testing Machine
  • FAQ
Overview

Basic Info.

Model NO.
customization
Maximum Load
Reference Below Data Sheet
Specification
Reference Below Data Sheet, Reference below data sheet
Diameter
Reference Below Data Sheet
Thickness
Other
Color
Customization
OEM/ODM
Customization
Lead Time
Negotiable
Wheel Core Material
Stainless Steel
Transport Package
Customization
Trademark
STARDRAWING
Origin
China
Production Capacity
5000pieces/Month

Product Description

Detailed Photos

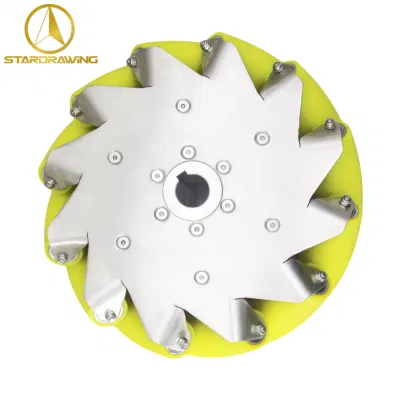

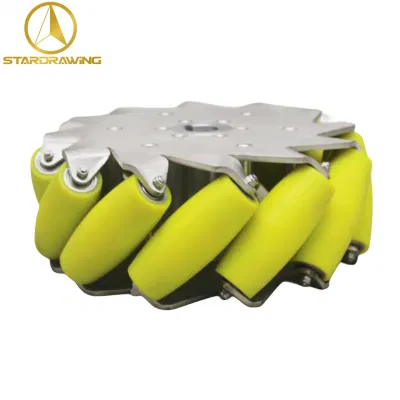

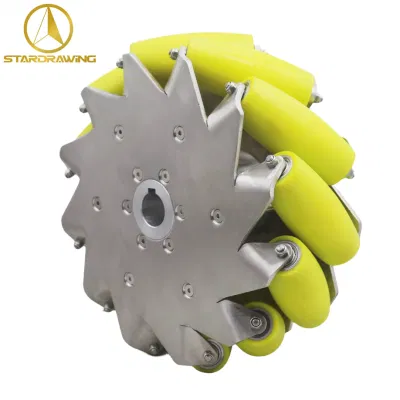

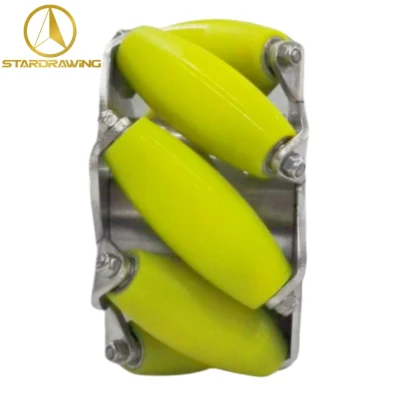

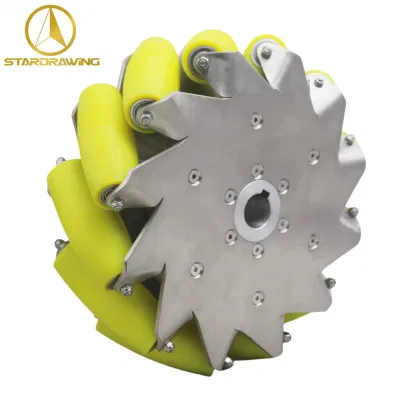

STARDRAWING 12inch 305mm Industrial Heavy Duty Mecanum Wheel for Robot Stainless Steel

Stardrawing 12inch 305mm Industrial Heavy Duty Mecanum Wheel for Robot Stainless Steel
Stardrawing 12inch 305mm Industrial Heavy Duty Mecanum Wheel for Robot Stainless Steel



Product Description

STARDRAWING 12inch 305mm Industrial Heavy Duty Mecanum Wheel for Robot Stainless Steel
The Mecanum wheel is a conventional wheel with a series of rollers attached to its circumference. These rollers typically each have an axis of rotation at 45° to the plane of the wheel and at 45° to a line through the centre of the roller parallel to the axis of rotation of the wheel. By alternating wheels with left and right-handed rollers, in such a way that each wheel applies force roughly at right angles to the wheelbase diagonal the wheel is on, the vehicle is stable and can be made to move in any direction and turn by varying the speed and direction of rotation of each wheel.

Main Features

1) Customizing order made is available
2) Various material options for Omni-Directional Wheels' roller. For example: High strength Nylon/Glass filled Nylon/Polyurethane/Rubber/Electricity Conductive materials
3) Various material options for Omni-Directional Wheels' core. For example: 45# steel/Aluminum Alloy/ 304 Stainless Steel/High Strength Polymer/Nylon
4) All directional rotation
5) Easy replacement and maintenance
6) Wheel diameter range from 3inch to 33inch available
7) Load capacity range from 50KG/per set to 40000KG/per set available
8) Smooth rolling provides higher efficiency and reduces wasted power

Product Parameters

  Stardrawing 12inch 305mm Industrial Heavy Duty Mecanum Wheel for Robot Stainless Steel
Item Number Diameter(MM) Width(MM) Max Load/Per Set(KG)
SMWSP76-50 76 40 50
SMWSP100-100 100 55 100
SMWSP127-140 127 70.74 140
SMWSP152-200 152 79 200
SMWSP203-200 203 78 200
SMWSP254-500 254 98 500
SMWSP305-1000 305 115 1000

Applications

STARDRAWING 12inch 305mm Industrial Heavy Duty Mecanum Wheel for Robot Stainless Steel is ideal for application in Internal factory area, Humid areas (Stainless steel design), Dusty areas, Conveying goods with flat stable bases, Air cargo handling, Assembly lines, Packing table, Feeding to machinery.
Stardrawing 12inch 305mm Industrial Heavy Duty Mecanum Wheel for Robot Stainless Steel
Stardrawing 12inch 305mm Industrial Heavy Duty Mecanum Wheel for Robot Stainless Steel
Stardrawing 12inch 305mm Industrial Heavy Duty Mecanum Wheel for Robot Stainless Steel


Packaging & Shipping

Stardrawing 12inch 305mm Industrial Heavy Duty Mecanum Wheel for Robot Stainless Steel
Stardrawing 12inch 305mm Industrial Heavy Duty Mecanum Wheel for Robot Stainless Steel



Testing Machine

Stardrawing 12inch 305mm Industrial Heavy Duty Mecanum Wheel for Robot Stainless Steel

FAQ

Dear : Can I get free caster wheel samples from Stardrawing ?

STAR : We would be honor to offer you free caster samples, and we believe that you would be willing to pay for the freight fee for such good products. Please provide your DHL/FedEx or other freight collect number and advise which express type should be chosen, international express type(2~3days) or economic type (4~5days).

Dear : What is your payment terms of caster ?
STAR : It is undisputable and crystal clear that 30% advanced payment, 70% before shipment, hope we have reached agreement for this regular payment manner.

Dear : What about your lead time ?
STAR : Usually, caster sample needs 5-7 days, mass production time needs 30 days. It is up to the quantity and stocking.

Dear : Is it OK to print my logo on casters ?
STAR : Sure.
Option 1 - Build the molds and fixtures upon your sample or technical drawings
Option 2 - Add your logo on fork or wheel
Option 3 - Pack the casters in your branded carton

Dear : How can I trust the quality of your casters ?

STAR : We tell you that we have variety of international quality certificates, we have a very strict quality control system, we do a series of caster tests before shipping. Right, you still have no idea about our quality. Therefore, no hesitate! Just place a trial order from Stardrawing. You will not only trust the quality of casters, but also trust the character of Stardrawing people since then.
