4 Inch - 8inch Swivel Plate PU on Cast Iron Heavy Duty Caster

Looking for heavy duty casters? Our factory offers 4-8 inch swivel plate PU on cast iron casters. Check out our selection now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Company Profile
  • Our Advantages
  • FAQ
Overview

Basic Info.

Model NO.
EH07-11-150S-401
Maximum Load
420
Specification
100X48,125X48,150X48,200X48mm, 150X48mm
Diameter
100,125,150,200mm
Thickness
48
Material
PU Tread Cast Iron Core
Sizes
100X48mm, 125X48mm, 150X48mm, 200X48mm
Plated
Zinc Plated
Transport Package
15PCS/Carton
Trademark
GLOBE
Origin
Foshan, China
HS Code
87169000
Production Capacity
1000000pcs per month

Product Description


Product Description

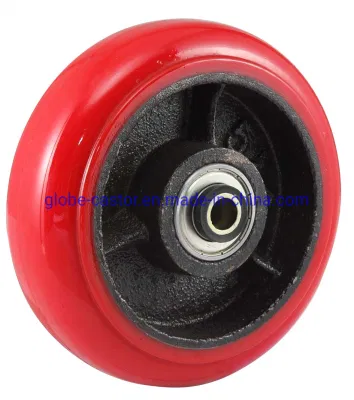

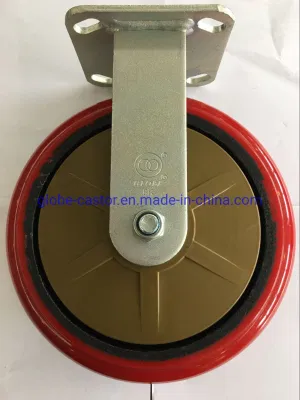

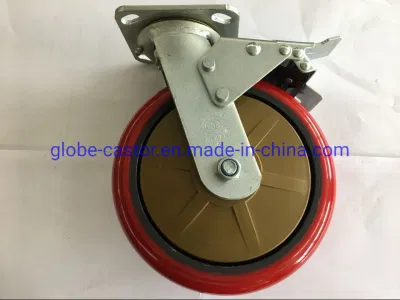

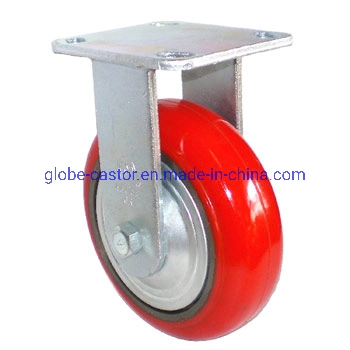

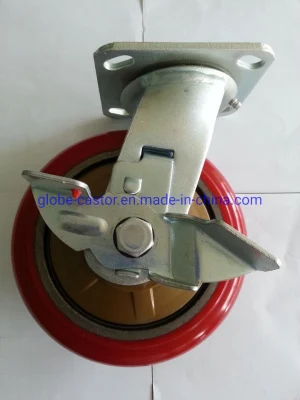

4 Inch - 8inch Swivel Plate PU on Cast Iron Heavy Duty Caster
Detail Specification Wheel sizes: 100X48mm, 125X48mm, 150X48, 200X48mm
Wheel material: PU tread, PP core
Load capacity: 200kgs,280kgs, 350kgs, 420kgs
Zinc plated, Double ball bearing
Top plate size: 114X100mm
Bolt hole spacing: 84X71mm
Bolt hole diameter: 11mm
Caster types: swivel, fixed, swivel w/dual brake and swivel w/side brake
Payment terms TT
Packing details Package: 15pcs;  12PCS; 10PCS; 6PCS/CTN
Carton size: 44X21X28.5mm

4 Inch - 8inch Swivel Plate PU on Cast Iron Heavy Duty Caster
EH07-11-100S-401
4"  5"  6"  8" Iron core polyurethane (RED)Wheel dia.: 100mm/125MM/150MM/200MM
Wheel width: 48mm
Setting height: 145mm/166mm/192mm/243mm
Swivel radius: 80mm/96mm/115mm/150mm
Dual brake radius: 122mm/144mm/151mm
Top plate size: 114X100mm
Hole spacing: 84x71mm
Hole dia. : 11mm
Swivel ,Rigid, Metal dual brake, Swivel w/side brake
EH07-11-100S-403
4"  5"  6"  8" Iron core polyurethane (YELLOW)
Wheel dia.: 100mm/125MM/150MM/200MM
Wheel width: 48mm
Setting height: 145mm/166mm/192mm/243mm
Swivel radius: 80mm/96mm/115mm/150mm
Dual brake radius: 122mm/144mm/151mm
Top plate size: 114X100mm
Hole spacing: 84x71mm
Hole dia. : 11mm
Swivel ,Rigid, Metal dual brake, Swivel w/side brake
4 Inch - 8inch Swivel Plate PU on Cast Iron Heavy Duty Caster
4 Inch - 8inch Swivel Plate PU on Cast Iron Heavy Duty Caster
EH07-11-100S-410
4"  5"  6"  8" Iron core polyurethane (YELLOW)
Wheel dia.: 100mm/125MM/150MM/200MM
Wheel width: 48mm
Setting height: 145mm/166mm/192mm/243mm
Swivel radius: 80mm/96mm/115mm/150mm
Dual brake radius: 122mm/144mm/151mm
Top plate size: 114X100mm
Hole spacing: 84x71mm
Hole dia. : 11mm
Swivel ,Rigid, Metal dual brake, Swivel w/side brake

4 Inch - 8inch Swivel Plate PU on Cast Iron Heavy Duty Caster
4 Inch - 8inch Swivel Plate PU on Cast Iron Heavy Duty Caster






Company Profile

Offering over 1,000 Varieties of Casters

 Established in 1988 with a registered capital of $20 million, Foshan Globe Caster is a professional manufacturer of all kinds of casters.
We have developed eight series and more than 1,000 varieties through constant improvement and innovation. Our products are widely
marketed in Europe, the US, Africa, the Middle East, Australia and Asia.


Ensuring Flexibility, Convenience and Durability of Products

We adopted advanced technology, equipment and high-quality materials to ensure the flexibility, convenience and durability of our products.
In different circumstances, our products have wear, collision, chemical corrosion, low/high temperature resistance, trackless, floor protection
and low noise features.


Contact Us Today

Our 120,000sqm factory and 500 skilled workers are ready to complete your volume orders.

Contact us today to get your order start.

                                                    Full View of Factory                                                                                        Office building

4 Inch - 8inch Swivel Plate PU on Cast Iron Heavy Duty Caster
4 Inch - 8inch Swivel Plate PU on Cast Iron Heavy Duty Caster

                                                          Showroom                                                                                  Meeting room

4 Inch - 8inch Swivel Plate PU on Cast Iron Heavy Duty Caster
4 Inch - 8inch Swivel Plate PU on Cast Iron Heavy Duty Caster


      4 Inch - 8inch Swivel Plate PU on Cast Iron Heavy Duty Caster

Our Advantages

Advantages on our products:

1) High quality materials purchased with strictly quality check.
2) Each product checked strictly before packing.
3) We are professional manufacturer for over 25 years.
4) Trial order or mixed orders are accepted
5) OEM orders are welcome.
6) Prompt delivery
7) Any type of casters and wheels can be customized
4 Inch - 8inch Swivel Plate PU on Cast Iron Heavy Duty Caster
