2 Inch Cast Iron Small Pulley Wheel Heavy Duty 4" Barn Door V Groove Caster Track Wheels

Get heavy duty 2 inch cast iron small pulley wheel and 4" barn door V groove caster track wheels direct from our factory. Durable and reliable. Order now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • About us
  • ODM| OEM Case
  • Product Parameters
  • Workshop & Machine
  • Laser cutting Machine
  • manufacturing process flow
  • FAQ
Overview

Basic Info.

Model NO.
BHFS471
Groove Design
V Groove U Groove Y Groove
Multiple Usages
Power/Rolling Dog/Baby Gates, Industrial Carts
Strong Bearing Force
up to 1000pounds
Adapt to Wide Temperature Range
in The Range of -30 ºC -100 ºC.
Applications
Used to Inverted Track, Rolling Gate, Sliding Gate
Sealed Ball Bearings
Single Double
Maintenance-Free
No Grease Fittings
Maintain Wheel Alignment
Manufactured by Computer-Controlled Lathe Machine
Steering
Directional Casters
Feature
Ease The Vibration, No Noise and Smooth Operation
Easy Installation
Can Be Bolted on or Welded on
Heavy Duty Material
High Quality Galvanized Steel
Advantage
Durable,Strong Bearing Capacity, Smoothy Wheel
Application Place
Suitable for Heavy Sliding Doors, Inverted Track
Application Area
Factory Doors, Industrial Machinery Track Project
Transport Package
Carton Box
Specification
40mm|50mm|60mm|70mm|80mm|90mm|100mm
Trademark
Borhaf
Origin
Rizhao, China
HS Code
8302410000
Production Capacity
100000pieces/Day

Product Description

Product Description

Borhaf Metal Fabricator gate wheels & track parts export range includes Gate Pulley Track Wheels and exporters of Steel Track Wheels, sliding gate wheels, sliding gate pulley, cantilever wheel system, Gate wheels V Groove, U Groove, Steel Gate Wheels with Bearings and fittings nut bolts etc. We are the Chinese manufacturer and exporter of Sliding gate wheel& accessories.

Feature:
[Heavy Duty Material]  Bracket use Cold rolled sheet stamping. Wheels use 45 Steel, fine finished high strength, good toughness, low creep, abrasion resistance and chemical stability, durable to use
[Strong Bearing Force] The heavy duty caster wheels are designed for loads of up to 1000 pounds
[Groove Design] U Groove | Y Groove| V Groove fits inverted tracks perfectly and can ease the vibration, no noise and smooth as silk.
[Multiple Usages] Widely use,a must get for power/rolling dog/baby gates, industrial carts, assembly fixtures, containers, racks, and other equipment and projects
[Adapt to Wide Temperature Range]The sliding gate track roller can adapt to a wide temperature range, can be used in the range of -30 ºC -100 ºC.
[APPLICATIONS] Used to inverted track, rolling gate, sliding gate, industrial machines, wire rope rail device, containers racks, baby gate, dog gate, etc.
[Sealed bearings] have sealed bearings: Single Bearing | Double Bearing, resulting in a more freely moving wheel
[Surface Treatment] These Groove solid steel wheels are zinc plated for durability and anti-corrosion, Yellow | White color
[Maintenance-free] (no grease fittings)
[Wheel diameter]: 40mm|50mm|60mm|70mm|80mm|90mm|100mm and can produce customerized size according to the new drawing.
[Application]: Widely used for
winding gates, single gates, revolving gates, patio gates, industrial machinery and bag containers, baby gates, dog gates.
[Instruction]: Widely used on
backyard gates, driveway gates, moving gates, light fixtures, heavy sliding doors, inverted track, factory doors, industrial machinery track projects, dog doors, garage doors, garden doors.
[Advantage]: Durable,Strong Bearing Capacity, Smoothy wheel

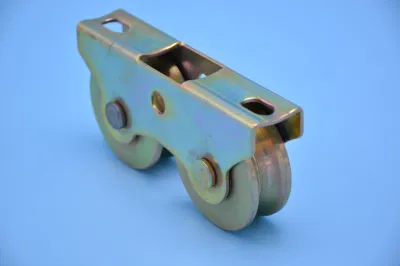

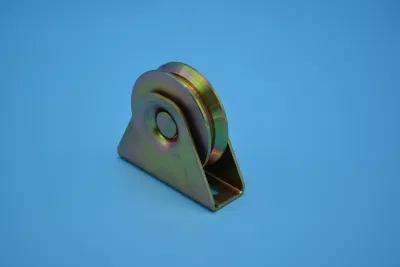

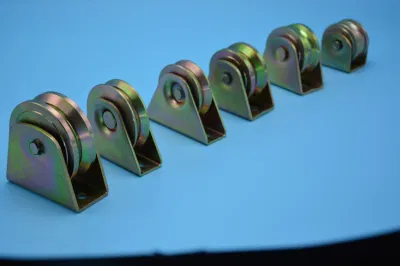

Details Photos:
2 Inch Cast Iron Small Pulley Wheel Heavy Duty 4" Barn Door V Groove Caster Track Wheels2 Inch Cast Iron Small Pulley Wheel Heavy Duty 4" Barn Door V Groove Caster Track Wheels2 Inch Cast Iron Small Pulley Wheel Heavy Duty 4" Barn Door V Groove Caster Track Wheels2 Inch Cast Iron Small Pulley Wheel Heavy Duty 4" Barn Door V Groove Caster Track Wheels2 Inch Cast Iron Small Pulley Wheel Heavy Duty 4" Barn Door V Groove Caster Track Wheels



About us

About Borhaf Metal Fabricator:

We specialize in all types of sheet metalworking / stamping, metal pressing and can manufacture custom pressed metal parts.
Our main production and processing are all type of precision sheet metalworking/ stamping parts, custom-made precision metal stamping, welding assembly parts, Laser-cutting metal parts.
Our precision sheet stamping parts includes Brackets, Cable anchor brackets,Frame, Vehicle Processing Parts, Automobile Spare Parts, Medical Device Parts, Industrial Machines, Electric Appliance Parts, Furniture Parts, Agricultural Machinery, Electronics, Construction, Machinery Parts and so on.

Main products:Metal Stamping,Sheet Metalworking,Metal Brackets,Metal Fabricated,metal laser cutting,Mounting plate,Wood connectors,auto parts,Post Brackets,Adjustable Post Base,Sheet Bending,etc

We Product and export sliding gate wheel, cantilever gate wheels, sliding gate roller, sliding gate pulley, sliding door roller, sliding door wheel, sliding door pulley, sliding gate track, sliding door track., bottom rail, bottom wheel Industrial hardware to different countries.



ODM| OEM Case

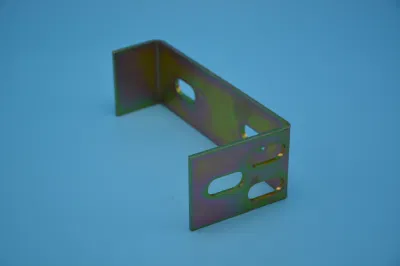

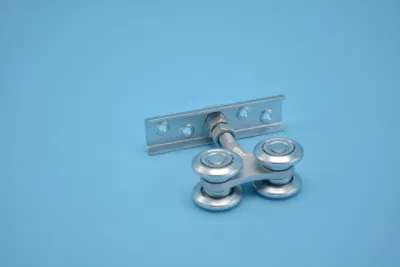

The following is that we have developed Gate Truck Wheel for customers. Please make a referrence.
We have unparalleled competitiveness in the research and development of new products and the manufacture of samples. Please feel free to send us the drawings and our team will work closely with you.

2 Inch Cast Iron Small Pulley Wheel Heavy Duty 4" Barn Door V Groove Caster Track Wheels

2 Inch Cast Iron Small Pulley Wheel Heavy Duty 4" Barn Door V Groove Caster Track WheelsKeywords:sliding gate wheel, cantilever gate wheels, sliding gate roller, sliding gate pulley, sliding door roller, slinding door wheel, sliding door pulley, sliding gate track, sliding door track, bottom rail, bottom wheel Industrial hardware



Product Parameters



Material Cold-rolled steels,hot-rolled steels,galvanized sheets,copper,stainless steel,SPCC
SPE Roll material thickness is 0.3-10mm;sheet metal thickness is 0.3-30mm
Prototype & Mould In-house tooling design and manufacturing.
Spection As your drawing or Sample
Processing Metal blanking
Deep Drawing
Sheet Bending
Punching
Pipe Bending
Laser Cutting
Stamping
Metal Welding
Piercing
Forming
Surface treatment
Surface Treatment Polishing,galvanizing ,dacromet,chrome plating,spraying,black oxide coating,electrophoresis,powder coating,etc
Tolerance Stamping parts"0.01-0.1mm CNC machine parts:0.1-0.002mm or special requirments
Punching press 35tons-250tons
Maximum Presss Bed width 2000mm
Maximum Presss Bed Length 1500mm
250ton CNC Press Brake Machine Bending Material length 3200mm
6000W laser cutting Machine Laser cut Material thickness 30mm.
Maximum cutting thickness Carbon steel:30mm| stainless steel:12mm | Aluminum and allorys:8mm.Tolerance:+-0.05mm
Laser cutter work table 2500mm*6000mm
500Ton Oil Hydrulic Machine Maximum Hydraulic press stroke:1500mm
2500 Plate cutting machine Cut material thickness 16mm
Drawing Format Auto CAD,Pro/E,Solidworks,UG(dwg,dxf,IGS,STP,X-T),PDF,Pictures,etc.
Service Type ODM | OEM
Certificate ISO9001:2015 | SGS | BV |TUV
Tech Stand ISO,GB,JIS,DIN,ASTM,ANSI
Application automobile spare,agriculrual machinery,construction,electric appliance,furniture,hardware,home appliances,Industrial machines,medical Device,machinery parts,small engine and so on.




Factory Keywords:
Metal Stamping,Channel Bending,Offset Bending,Edge Bending,U-Bending,V-Bending,Bottoming,Air Bending,Step Bending,Roll bending
Wipe Bending,Rotary Bending,Sheet Metalworking,Metal Brackets,Metal Fabricated,metal laser cutting,Mounting plate,Wood connectors,Post Brackets,Adjustable Post Base,Sheet Bending,Sheet Metal Fabrication, Metal Fabrication, Sheet Metal Parts, Precision Sheet Metal fabrication, sheet metal, precision stamping, Precision Metal Stamping, Metal Stamping, Stamping Parts, Stamped Parts, Laser Cutting Parts, Laser Cut Parts, Custom Metal Stamping, metal parts, Metal Laser Cutting Parts, Laser Cutting, Laser Cut, Punching Parts, Punched Parts, Deep Drawn Part, deep drawing stamping parts, CNC machining parts, CNC machined parts, machining, turned parts, turning parts. Etc



Workshop & Machine



2 Inch Cast Iron Small Pulley Wheel Heavy Duty 4" Barn Door V Groove Caster Track Wheels


Laser cutting Machine



Laser cutting is one of Borhaf metal fabricator sheet metal profiling processes that directs a high-power laser through optics to cut materials for industrial applications. Laser cutting is both more precise and less energy-consuming than plasma cutting, but has an upper threshold on the thickness of the material being cut. Borhaf's fiber optic lasers offers fiber can cut many materials including stainless steel,mild steel, copper, brass, titanium, aluminum. With a 2.5 meterX 6.0 meter work table, our laser cutter has ample room for large parts or for nesting multiple jobs on a single piece of sheet metal.

2 Inch Cast Iron Small Pulley Wheel Heavy Duty 4" Barn Door V Groove Caster Track Wheels

manufacturing process flow

The process of turning sheets of metal into a useful part or component is called sheet metal stamping. The metal is fed into a press, where the stamping tool, also known as a die, creates the desired shape. The die is pressed into or through the metal with tremendous force. The force used in the process is measured in tons.
Normally it is done with a cold-forming technique. the part can come out hot because of the friction that's created between the metal and the die from the force of the press.

At Borhaf, we perform a variety of custom metal stamping operations, including:
2 Inch Cast Iron Small Pulley Wheel Heavy Duty 4" Barn Door V Groove Caster Track Wheels

Machine   Facilities   List
No Name Quantity Description
1 6000W Laser Cutting Machine 1 Can Cut Steel Plate to 30mm Thick
2 Laser Cutting Machine 1 Can Cut Steel Plate to 16mm Thick
3 250 Ton CNC Press Brake Machine 1 Bending Length can be 3200mm
4 500 Ton Oil Hydraulic Machine 1 Suit for Deep Stretching
5 250 Ton Stamping Machine 1 Suit for Stamping and Pressing
6 160 Ton Stamping Machine 3 Suit for Stamping and Pressing
7 125 Ton Stamping Machine 1 Suit for Stamping and Pressing
8 100 Ton Stamping Machine 5 Suit for Stamping and Pressing
9 80 Ton Stamping Machine 1 Suit for Stamping and Pressing
10 63 Ton Stamping Machine 3 Suit for Stamping and Pressing
11 40 Ton Stamping Machine 1 Suit for Stamping and Pressing
12 35 Ton Stamping Machine 1 Suit for Stamping and Pressing
13 CNC Pipe Bending Machine 1 For Pipe Bending
14 Polishing Machine 1 2500mm Length Part can be Polished
15 Plate Cutting Machine 2 Can Cut the Steel Plate to 16mm
16 Plate Cutting Machine 1 Can Cut the Steel Plate to 6mm
17 Welding Machine 10
18 Welding Machine 4
19 Welding Machine 5
20 Saw Blade Cutting Machine 2

List  of  commonly  used  materials
No Name Description (Thickness)
1 DC01 Stretch cold plate 1.0mm,1.2mm,1.5mm
2 Q235B steel plate 2.0mm,3.0mm,3.5mm,4.0mm,4.5mm,5mm,6mm,7mm,8mm,10mm,12mm,16mm,20mm
3 Q345B steel plate 3.0mm,4.0mm,5.0mm,30mm,40mm
4 500L Girder steel 5.0mm,8.0mm
5 610L Girder steel 8.0mm
6 Galvanized sheet 1.0mm,1.5mm,2.0mm,2.5mm,3.0mm,4.0mm
7 304 stainless steel 2.0mm,4.0mm,8.0mm
8 6061 Aluminum plate 4.0m,6.0mm
9 Q235B Square tube 20*20*2mm,30*30*2mm,40*40*2mm,50*50*5mm,80*80*2mm,105*105*2mm
10 Q235B Round tube Ø16*1.5mm,Ø25*2.0mm


2 Inch Cast Iron Small Pulley Wheel Heavy Duty 4" Barn Door V Groove Caster Track Wheels

FAQ



Q1. Are you a factory or trade company?
We are a factory located in, Wulian County Industrial Park, Rizhao, Shandong, China. Welcome to visit our factory.

Q2. Why choose us?
Overall processing capacity
Senior team
Economies of scale
Superior products
Technical Support

Q3.What kind of production service do you provide?
sheet metalworking / stamping, metal pressing and can manufacture custom pressed metal parts

Q4.What are our terms of payment?
We offer a variety of payment methods,L/C, T/T, D/P, Western Union, Paypal, Money Gram  and Others.

Q5.What's your main Main Markets?
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Q6.What does the quotation require?
 It is desirable to have a list of materials with the necessary details;  Or detailed engineering drawings;  We can also confirm materials according to your design requirements.


We provide all types of sheet metal fabrication metalworking / stamping and Laser cutting. Beyond the stamping service include Blanking, Deep-drawing, Bending, Punching, Drawing, Piercing, laser cutting, welding, and deburring operations. We also will provide surface treatments such as Polishing, Galvanizing, Heat Treating, Painting,etc

Please provide your requirement or drawing to us. (ex: material / quantity / tolerance / 3D file / surface treatment / special requirement). or to make any other requests. We'll be sure to follow-up with you as soon as possible.
