Heavy Duty Industrial Wheels Lifting Casters Container Caster Wheel

Looking for Heavy Duty Industrial Wheels Lifting Casters? Our factory produces top-quality Container Caster Wheels for all your industrial needs. Buy now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Photos
Overview

Basic Info.

Model NO.
LC-08
Maximum Load
40000kgs
Specification
2200*1800*2200mm, 2200*1800*2200mm
Diameter
711mm
Name
Caster Wheel
Feature
Lifting and Mobile
Color
Green or Customized
Size
1800
Weight
1600kgs
Transport Package
Polybag+Wood Pallet
Trademark
jianglong
Origin
China
Production Capacity
100000/ Month

Product Description

Effortlessly lifting Container 45cm off the ground with screw mechanism design,strong enough to haul up to 40 tons by only 4 sets Caster Wheel! Lifting, Mobile, Unique, Creative Caster Wheel
Product Description
Heavy Duty High Heat Industrial Caster Wheels High Temperature Resistant Lifting Casters Container Caster Wheel
The Lifting container moving Caster wheel can easily lift standard containers with a maximum load of up to 30 tons and lift them to a height of 450mm without the need for special large machinery. The second generation Liftig container moving Caster wheel by Jianglong adopts a mechanical screw design principle instead of the traditional hydraulic lifting method, effectively avoiding hidden dangers such as hydraulic leakage, compressibility, energy loss, and sensitivity to oil temperature changes. Additionally, the Jianglong container moving wheel is easy to maintain and has a low failure rate. Equipped with off-road performance high-load tires, it can achieve a maximum towing speed of 12km/h, making moving heavy containers an easy task.
Product Parameters


Model 4/Pcs load Max C.p.
LC-8 12000kgs Max 4km/H
8000kgs Max 25km/H
LC-15 15000kgs Max 4km/H
12000kgs Max 25km/H
LC-20 20000kgs Max 4km/H
15000kgs Max 25km/H
LC-30 30000kgs Max 4km/H
20000kgs Max 25km/H
Color Customized

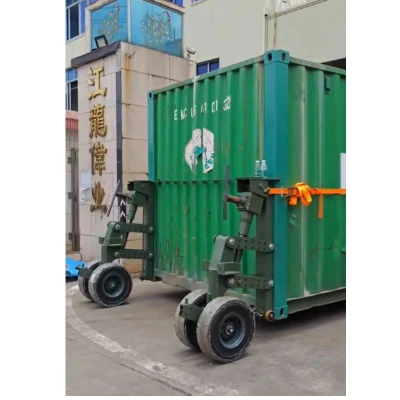

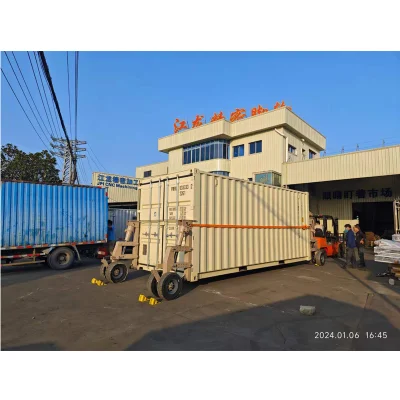

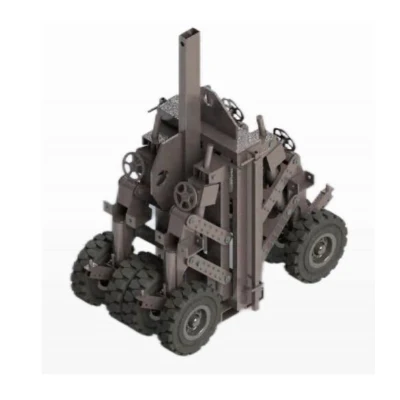

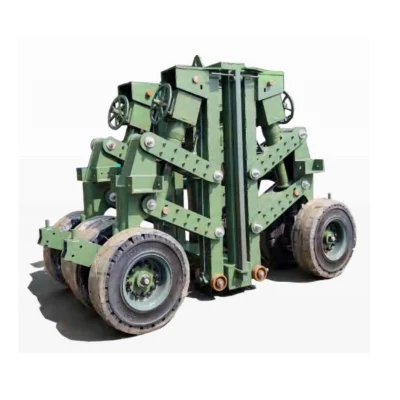

Detailed Photos



Heavy Duty Industrial Wheels Lifting Casters Container Caster Wheel


Heavy Duty Industrial Wheels Lifting Casters Container Caster Wheel Heavy Duty Industrial Wheels Lifting Casters Container Caster Wheel
Heavy Duty Industrial Wheels Lifting Casters Container Caster Wheel Heavy Duty Industrial Wheels Lifting Casters Container Caster Wheel

Heavy Duty Industrial Wheels Lifting Casters Container Caster Wheel
Heavy Duty Industrial Wheels Lifting Casters Container Caster WheelHeavy Duty Industrial Wheels Lifting Casters Container Caster Wheel
