Overview

Basic Info.

Model NO.
QT12-15
Dimension of Host Machine
3800*2500*3550mm
Moulding Period
15-20 Seconds
Pallet Size
1400*900*35mm
Host Machine Power
56.2kw
Vibration Force
100-130kn
Weight of Host Machine
14 Ton
Vibration Frequence
2800-4500r/Min
Workshop Area
350 Sqm
Hollow Block Production Capacity
23000 PCS Per 8 Hours
Transport Package
Suitable for Shipping
Specification
QT12-15 automatic brick machine
Trademark
DONGYUE
Origin
China
HS Code
84748020
Production Capacity
23000 PCS/8 Hour

Product Description

Product Description

QT12-15 concrete block making machine

Details description

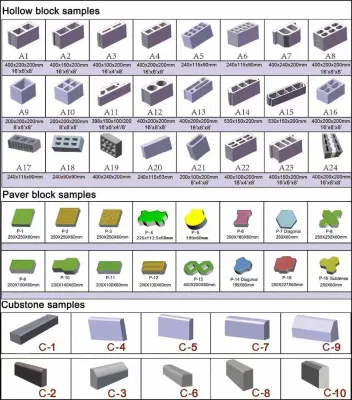

1.QT12-15 Brick Production Line is fully automatic brick making machine, which can make different sizes of hollow blocks, solid bricks, paver and curbstone by changing moulds.
2. QT12-15 Brick Making Machine adopt to hydraulic pressure moulding system , so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
3. The block machine will convert the excess oil liquid in the pressurized time to the vibration force, and the computer will
control the directional vibration, frequency conversion, braking and cancle vibration energy consumption.
4. Block molding machine low-frequency charging, high frequency vibration, mould and table vibration make concrete fully liquefied in 2 to 3 seconds, exhaust, so as to achieve high density, high strength, especially suitable for production of high-strength blocks,can be stacked after forming.
5. QT12-15 block molding machine is made from the photoelectric control host, which can be sent out of the material in time and avoid the influence of the remaining vibration, and some of the concrete is liquefied in advance.
6. The feeding hopper is equipped with oscillating feeding device, and the material is fed into the mould box by adjusting the swing fork. Imported electrical appliances, hydraulic components make the control, hydraulic two systems basically do not fault operation;

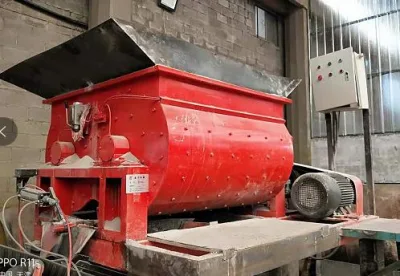

Detailed Photos

Concrete Block Making Machine AlibabaConcrete Block Making Machine AlibabaConcrete Block Making Machine Alibaba

Product Parameters

MAIN SPECIFICATIONS
Dimension of host machine 3800x2500x3550 mm Host machine power 56.2kw
Weight of host machine 14 ton Vibration force 100-130kn
Water consumption 20Ton/day Pallet size 1400×900×35mm
workshop area 300m² Voltage 380/415/440 V
Mixer model CMP1000 Molding area 1350×840mm
THEORETICAL PRODUCTION CAPACITY
Block/ Size(LxWxH) Pcs/ Mould Psc/ Hr Pcs/ 8 Hrs
Hollow Block 400x200x200mm 12 2160-2880 17280-23040
Multi-hole Brick 240x115x90mm 30 5400-7200 43200-57600
Solid Brick 240x115x53mm 60 10800-14400 86400-115200
I Shape Paver200x163x60mm 28 4320 34560
Rectangle paver 200x100x60mm 42 7560 60480

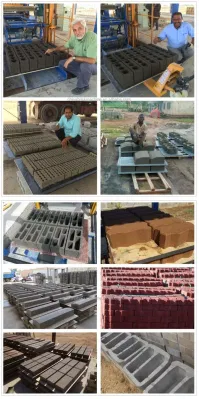

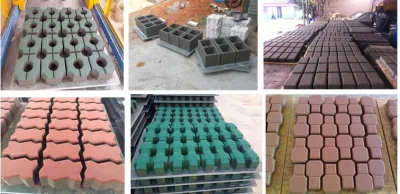

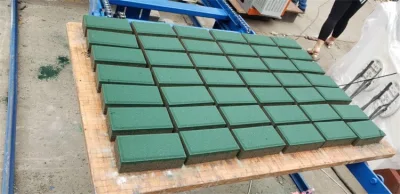

Finished blocks

Concrete Block Making Machine Alibaba

Company Profile

Dongyue Machinery Group was built in 1994,and now Dongyue is a national large-scale designated building materials machinery manufacturer, a coalition of researching, producing and marketing, and services with registered asset of 234 million RMB, total asset of 1 billion RMB, total area of 1,332,000square meters, and over 1500 staff.
Concrete Block Making Machine Alibaba

Packaging & Shipping

Concrete Block Making Machine Alibaba

Certifications

Concrete Block Making Machine Alibaba
