China Customizable Heavy Forged Crane Wheel (OD670)

Get China Customizable Heavy Forged Crane Wheel (OD670) from our factory. We offer high-quality products built to your specifications. Order today.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Photos
  • Customer Visiting
  • Certifications
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
OD670
Surface Treatment
Sand Blasting
Forging Tolerance
+/-0.1mm
Standard
ANSI
Certification
ISO 9001:2008
Forged Wheel
Port Crane Equipment
Forging Crane Wheel
Port Container Crane Spare Part
Trolley Wheel
Crane Equipment
Transport Package
Ocean Shipping Packing
Specification
OD670
Trademark
BX
Origin
Changzhou, Jiansu, China
HS Code
84835000
Production Capacity
300PCS/Month

Product Description







China Customizable Heavy Forged Crane Wheel (OD670)

Product Description

About Us

As a company of industries and trading integration with ISO 9001-2008 Certificate, Changzhou Baoxin Metallurgy Equipment Manufacturing Co., Ltd. Has been in manufacturing material handling equipment parts for many years, such as gears, wheels and sheaves and so on, with professional experience.

Trolley wheel features:
1) Material: 60#, 65 #, 65Mn, 42CrMoA
2) Heat treatment: Hardening and tempering, high frequency quenching, carburizing quenching and so on
3) Trand surface and rim quench hardness: HRC45-55
4) Trand surface and rim quench depth: 15-18mm
5) processing wheel diameter: Φ 300-1000mm
6)Precise measurement and surface finishes are available
7)Inspection: All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that best quality product goes out in the market.
8)good quality with reasonable price, timely delivery and great customer service.

It is used in crane, port machine, oil drilling rig and so on.


Our Service:
If you are interested in any of our products, please contact me freely! Warmly Welcomed your visit to our factory in China, OEM service will be ok.


Product Parameters


Basic Specification Basic Specification
D D1 B B1 d B2
max
C
min
b
min
X
max
Y
max
S d1 d2 D2 D3 R r
mm μm mm
250 280 90 90 70 40 5 20 50 25 120 30 210 165 10 5
315 355 110 110 110 60 5 20 60 30 175 30 265 220
155 120 80 12.5 25 190 255
400 440 125 140 120 70 7.5 20 35 190 35 340 265
450 155 130 80 12.5 25 205 330
500 540 130 140 130 70 10 20 40 205 40 430 315 20
320
550 175 140 100 12.5 25 220 325
630 680 145 160 160 70 12.5 25 80 45 255 50 560 405
175 100
210 190 180 120 15 30 60 285 530
710 760 155 180 170 80 12.5 25 50 270 55 630 450 25 6
195 120
210 210 190 15 30 65 300 600
800 850 155 180 180 80 12.5 25 50 285 60 710 500
195 120
210 210 200 15 30 70 320 680
900 950 155 190 190 80 12.5 25 100 55 300 65 800 550 30
195 120
210 210 230 15 30 75 365 770 565

Detailed Photos

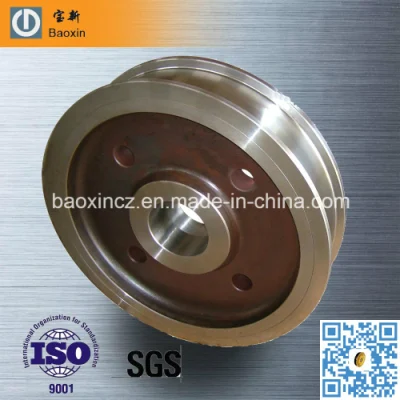

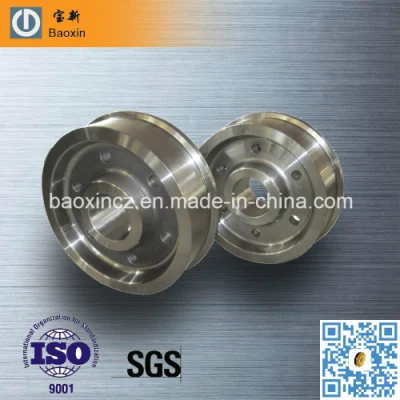

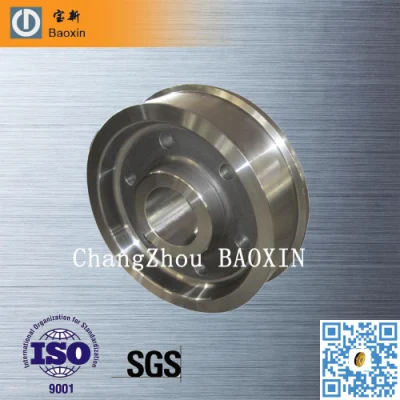

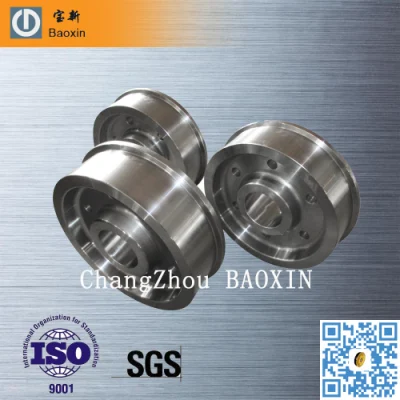

China Customizable Heavy Forged Crane Wheel (OD670)
China Customizable Heavy Forged Crane Wheel (OD670)
China Customizable Heavy Forged Crane Wheel (OD670)
China Customizable Heavy Forged Crane Wheel (OD670) China Customizable Heavy Forged Crane Wheel (OD670) China Customizable Heavy Forged Crane Wheel (OD670) China Customizable Heavy Forged Crane Wheel (OD670) China Customizable Heavy Forged Crane Wheel (OD670)

Customer Visiting


China Customizable Heavy Forged Crane Wheel (OD670)



Certifications



China Customizable Heavy Forged Crane Wheel (OD670)

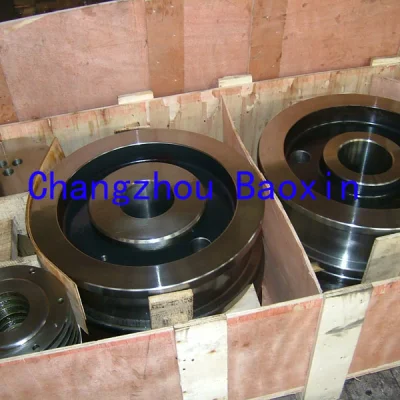

Packaging & Shipping


China Customizable Heavy Forged Crane Wheel (OD670)

FAQ

FAQ:
Q: What information should I provide if I want to order the products?
1) Product information: Quantity, specification
2) Delivery time required.
3) Shipping information: Company name, address, phone number, destination seaport/air port.
4) Forwarder's contact details if there is any in China.

Q: How about your payment terms?
A: 30% -50%deposit, with the balance before delivery, we accept T/T and L/C at sight.

Q: Can I use our own logo?
A: Yes, we can produce by using your own logo if you need.

Q: How about sample & MOQ policy?
A: Welcome sample order. MOQ can be 1 set.

Q: What is your lead time for your goods?
A: Normally 30 days after confirmed order,
