2 Ton High Load 8inch Super Heavy Duty Caster

Get exceptional strength and durability with our 2 Ton High Load 8inch Super Heavy Duty Casters. As a factory, we provide top-quality caster solutions.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
D705-46F200X80
Bearing Type
Ball Bearing
Surface Treatment
Zinc Plated
Brand
Double Rhombus
Maximum Load
2000kg
Specification
8 Inch, GB. ISO, BSCI, SGS, REACH, ROHS
Diameter
200mm
Thickness
80mm
Style Name
Super Heavy Duty Casters
Material
PU+Cast Iron
Bearing
Double Ball Bearings
Application
Industrial Equipment
Width
80mm
Load Capacity
2000kg
Over Height
260mm
Offset
50mm
Packing
Carton
Transport Package
Pallets; Wooden Cases
Trademark
Double Rhombus
Origin
Hubei, China
HS Code
87169000
Production Capacity
500, 000PCS/ Month for Caster

Product Description

Parameter


Brand and series

DOUBLE RHOMBUS Super Heavy Duty Casters Series

Model No.

46F150 x 80

46F200 x 80

46F250 x 100

20F150 x 80

20F200 x 80

20F250 x 80

Wheel diameter

150mm

200mm

250mm

150mm

200mm

250mm

Wheel width

80mm

80mm

80mm

80mm

80mm

80mm

Bearing

Double ball bearing

Double ball bearing

Double ball bearing

Double ball bearing

Double ball bearing

Double ball bearing

Load capacity

1500KG

2000KG

2000KG

1500KG

2000KG

2000KG

Total height

210mm

260mm

310mm

210mm

260mm

310mm

Plate size

150 x 140 x 10 mm

150 x 140 x 10 mm

150 x 140 x 10 mm

150 x 140 x 10 mm

150 x 140 x 10 mm

150 x 140 x 10 mm

Bolt hole spacing

120 x 110 mm

120 x 110 mm

120 x 110 mm

120 x 110 mm

120 x 110 mm

120 x 110 mm

Hole size

13

13

13

13

13

13

Housing thickness

8

10

10

8

10

10


2 Ton High Load 8inch Super Heavy Duty Caster 2 Ton High Load 8inch Super Heavy Duty Caster
Super Heavy Duty Caster's general features:
Super heavy duty caster is made according to the experienced caster knowledge and principle of structural mechanics, the new designed caster not only has beautiful shape but also with good load capacity when it is running.
1. Super heavy duty casters with yellow zinc plating,bright zinc plating optional.
2. Wheel part: 46F: PU wheel tread, cast iron wheel center, double ball bearing.
                        20F:MC nylon wheel,double ball bearing.

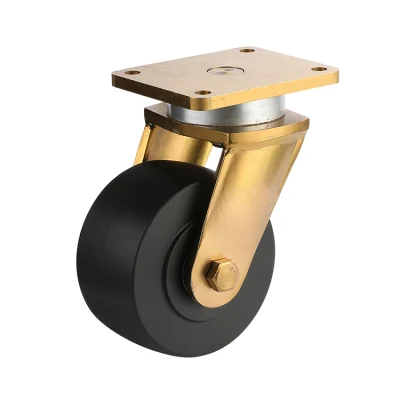

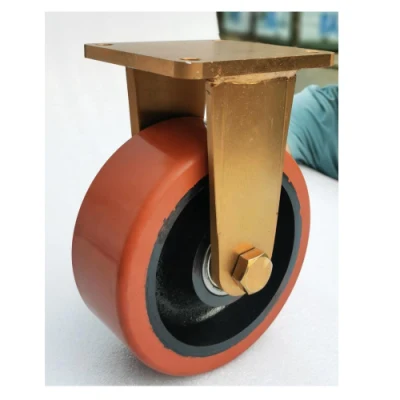

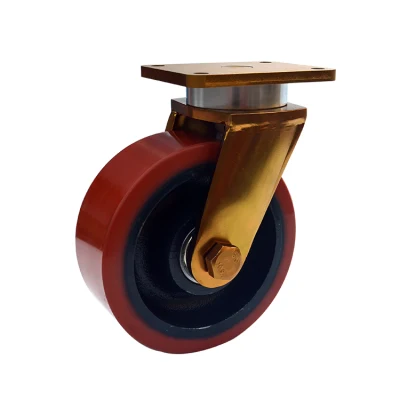

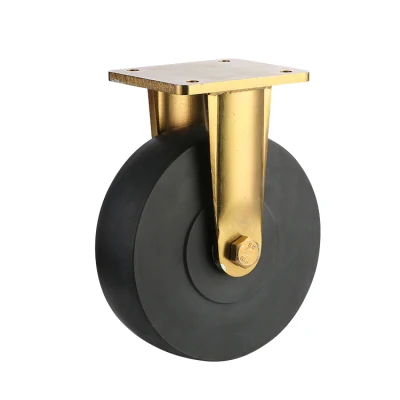

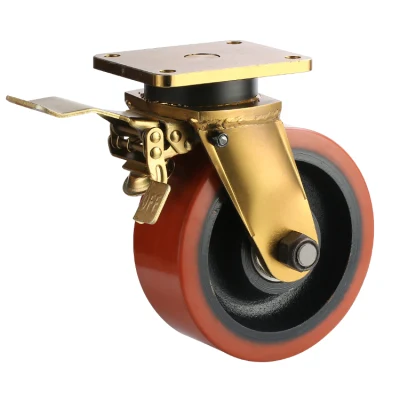

3. There are three items of casters for you to choose: fixed plate caster, swivel plate caster, swivel plate with brake caster
4. Applicable products: Heavy machines & equipments; Industrial carts and logistic carts
5. Δ Packing: 40pcs for one carton; 100pcs/carton for small caster and other packing ways.
6. Certification: ISO 9001: 2008/, OHASA18001: 1999, ISO 14001: 2004.


Industiral Caster's introduction:
1. A caster is an undriven, single, double, or compound wheel that is designed to be mounted to the bottom of a larger object so as to enable that object to be easily moved. They are available in various sizes, industrial casters' optional size: 125mm,150mm, 200mm, 250mm,with fixed plate, swivel top-plate with or without brake. Swivel bolt hole with or without brake.
2. The housing is made of high quality carbon steel with elegant galvanized apearance, and it suits for many kinds of industrial equipments.
3. Casters are found in numerous applications, including shopping carts, office chairs, and material handling equipment. With high load capacity, heavy duty casters are used in many industrial applications.
4. Our company can manufacturing a large number of casters, wheels, our main products are Heavy duty caster, shopping cart casters, industrial casters for European types series, casters for garbage bin series, stainless steel casters, medical casters, instrumental casters, furniture casters, twin wheel casters and medium duty casters and so on.


Double Rhombus do the best casters in China:
1. Scientific structure design;
2. Special rotation design;
3. High quality material to ensure the caster capability.
4. High quality materials purchased with strict quality checking.
5. Producing strictly according to the ISO quality management system.
6. Each product will be checked strictly before packing.
7. The most important thing is: We are professional manufacturer.

Test range:
1. Shock absorption function
2. Load capacity
3. Rotating ability
4. Impact resisting performance
5. Running ability
6. Service life evaluation


Delivery and payment:
1. The payment will be by T/T. 40% advance payment. The balance paid before shipment
2. The goods will be shipped within 4 weeks after receiving down payment from buyer.

Company information
1) Our company was founded in 1978, it has gotten certificates of ISO9001 quality system, OHSAS 18001 health system and ISO 14001circumstance system already. The National Standard Bureau entrusted our company to compile the National standard GB/T14687-93 and GB/T14688-93 for industrial caster in 1993 and 2011.

2) Our company has more than ten years export experience, professional manufacturing technology, and a strict quality control system. Most of our engineers and mechanics have more than 10 years experiences on manufacturing caster. Our factory has modern manufacturing processes, equipment and mature production lines for mould making, curved cutting, punching, welding, surface plating, machine assembling and capability tests for casters, airport trolley, airport counter, airport chair, queue stand, foldable hand truck.

3)  We have our own development and design teams. If there is any product you are interested in, please send us an inquiry, if you couldn't find what you want , please also let us know, we could make it customized for you.


Sample service


Sample         Available
Sample fee  Paid by customer, but can be refund when mass production
Delivery fee Send by express or by air, paid by customer, but can be refund after mass production


Service

Quick response: Our customers will get our reply with 24 hours, and get our quote within 24 hours during working days. You will get our best service


FAQ: Information we need to know

Model No. of  products
Quantity

2 Ton High Load 8inch Super Heavy Duty Caster 2 Ton High Load 8inch Super Heavy Duty Caster 2 Ton High Load 8inch Super Heavy Duty Caster 2 Ton High Load 8inch Super Heavy Duty Caster 2 Ton High Load 8inch Super Heavy Duty Caster


***If there is any caster that you are interested in, please send us an inquiry.
***If you couldn't find the caster that you are looking for, please also let us know, we could make new caster specially.

Model No.   Wheel dia. Wheel width Load capacity    Total height Offset Fork thickness
D705-46F150X80 150mm  80mm 1500kg       210mm 50mm 8mm
D705-46F200X80 200mm 80mm  2000kg       260mm 50mm 10mm
D705-46F250X80 250mm 80mm  2000kg       310mm 50mm 10mm
